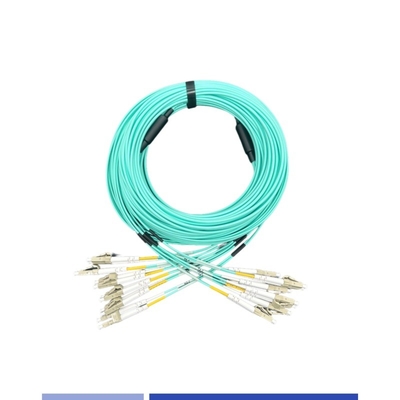

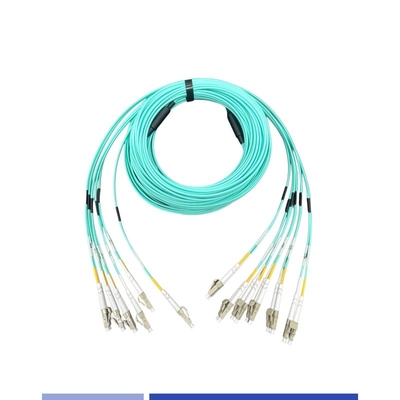

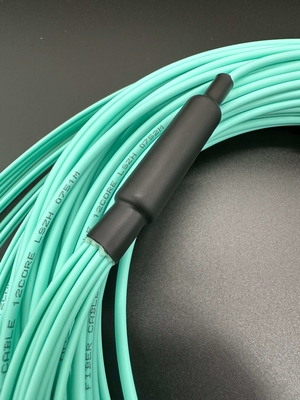

12 Núcleo OM3 LC Fibra Óptica Cable Trunk Duplex 25m LSZH Jaqueta

Name: 12 Núcleo OM3 LC Fibra Óptica Cable Trunk Duplex 25m LSZH Jaqueta
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G233-11112-25
Availability: InStock

Nome da marca:	GoreLink
Número do modelo:	G233-11112-25
MOQ:	1 Piece
Tempo de entrega:	1-3 Working days
Condições de pagamento:	T/T,Paypal,Western Union

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

Feito na China

Certificação:

RoHS,REACH

Produto:

Cabos de tronco de fibra óptica LC-LC

Aplicação:

FTTH FTTB Rede FTTX, Centro de dados

Parte N°.:

G233-11112-25

Contagem de fibras:

12 núcleos

Conector:

LC/UPC-LC/UPC Duplex

Modo de fibra:

Multimodo OM3

Capa:

LSZH

Fanout:

2.0 mm

Duração do Fanout:

0.5m ou personalizado

Duração:

25 m

Diâmetro:

9.5 mm

Perda de inserção:

≤0.30dB

Perda de retorno:

≥30dB

Comprimento de onda:

850nm, 1300nm

cor:

Aqua

Controle de qualidade:

100% teste antes do envio

personalizado:

- Sim, sim.

Packaging Details:

Neutral Bag/GoreLink Bag

Descrição do produto

12 Fibers LC-LC Fiber Trunk Cable, Multimode OM3, LSZH,Aqua

GoreLink OM3 LC-LC 12-core fiber trunk cable is a pre-terminated, high-speed multimode fiber optic cable designed for reliable data transmission in data centers, enterprise networks, and telecom applications. It consists of 12 optical fibers (6 duplex LC connectors) in a single jacket, ensuring high-density connectivity with low insertion loss.

Application

FTTH access network
Telecommunication Networks
Data Centers (40/100G SR4, QSFP+ links)
Enterprise Networks (backbone, server connectivity)
Telecom & CCTV Systems (high-bandwidth video/data transfer)

Key Features & Benefits

High-Speed Data Transmission
OM3 Multimode Fiber Optimized for 10G, 40G, and 100G Ethernet
Laser-Optimized (850nm VCSEL): Ensures low latency and high bandwidth (up to 10 Gbps @ 300m).
Reliable & Durable Construction
LC-LC Duplex Connectors: Standard small-form-factor connectors for high-density patch panels.
12 Fibers (6 Duplex Channels): Supports multiple connections in a single cable, reducing clutter.
LSZH/OFNR/OFNP Jacket Options: Flame-retardant for safety compliance in data centers.
Plug-and-Play Installation
Pre-Terminated & Tested: Saves time vs. field termination, ensuring low insertion loss (<0.3dB).
Flexible & Lightweight: Easy to route in tight spaces (e.g., server racks).

12 Núcleo OM3 LC Fibra Óptica Cable Trunk Duplex 25m LSZH Jaqueta 0

General Specification

Fiber Mode	Multimode OM3 50/125um
Fiber Count	12 Fibers
Connector A	LC/PC
Connector B	LC/PC
Wavelength	850nm/1300nm
Polish Way	PC
Cable Diameter	9.5±0.05mm
Cable Color	Aqua
Cable Jacket	LSZH
Cable length	As per the order request
OPTICAL PERFORMANCE
Insertion Loss(IL)	≤0.30 dB (Low loss)
Return Loss(RL)	≥30dB
40/100G Ethernet Distance	150m @850nm
10G Ethernet Distance	400m @850nm
Operating Temperature	-10 to +70℃
Storage Temperature	0 to +60℃

Ordering Information

PART NO.	DESCRIPTION
G233-11112-3	Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,3Mtr,Fanout 2.0mm 0.5m
G233-11112-5	Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,5Mtr,Fanout 2.0mm 0.5m
G233-11112-10	Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,10Mtr,Fanout 2.0mm 0.5m
G233-11112-15	Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,15Mtr,Fanout 2.0mm 0.5m
G233-11112-25	Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,25Mtr,Fanout 2.0mm 0.5m
G233-11112-30	Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,30Mtr,Fanout 2.0mm 0.5m
* Customized length

If you need any more help, please feel free to contact us at sales@gorelink.com .
