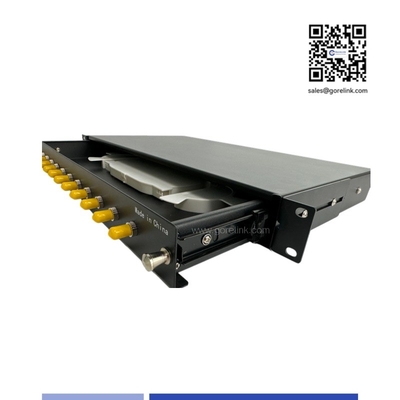

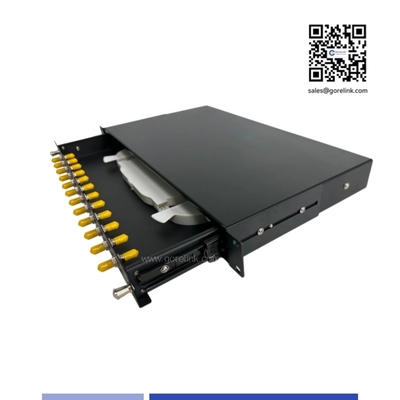

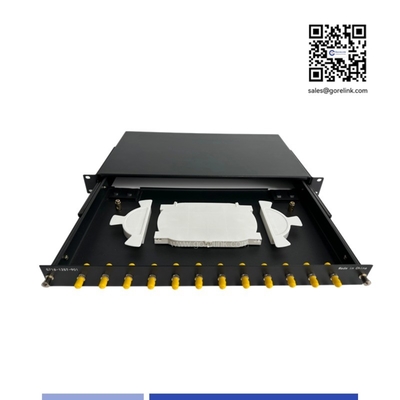

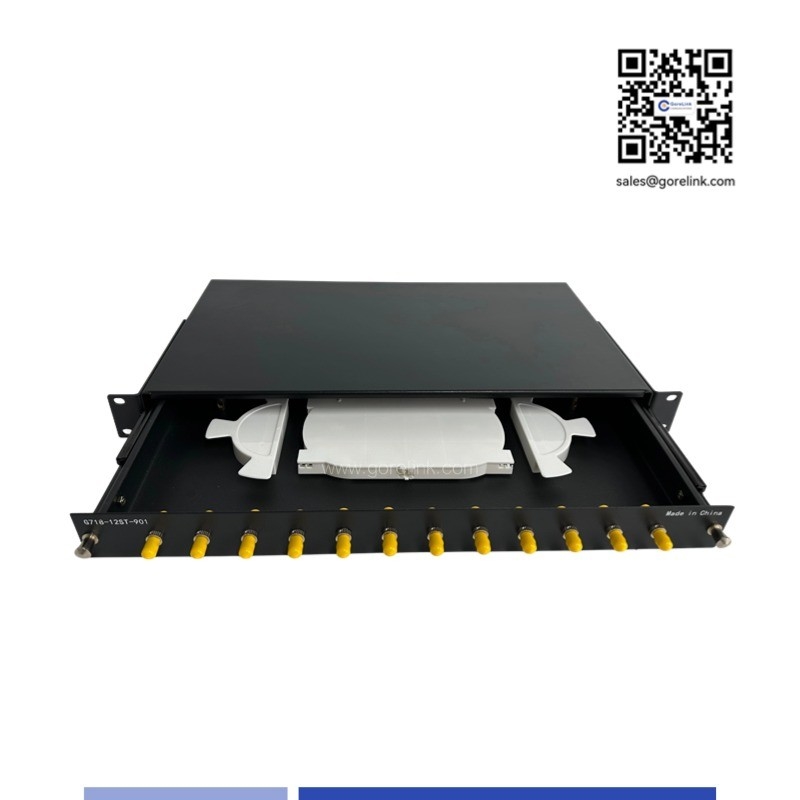

12 Port ST 1U Fiber Optic patch panel 19" Rack Mounted Loaded ST/UPC Singlemode Simplex Adapter

Name: 12 Port ST 1U Fiber Optic patch panel 19" Rack Mounted Loaded ST/UPC Singlemode Simplex Adapter
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G718-12ST-901
Availability: InStock

Nome da marca:	GoreLink
Número do modelo:	G718-12ST-901
MOQ:	Negotiable
Tempo de entrega:	1-7 Working days
Condições de pagamento:	T/T, Western Union,Paypal

Informações detalhadas

Descrição do produto

Informações detalhadas

Place of Origin:

China

Certificação:

RoHS,REACH

Product:

Fiber Optic Patch Panel

Application:

FTTH FTTB FTTX Network

Part Number:

G718-12ST-901

Product type:

Slide-out drawer type

Material:

Cold-rolled Steel

Ports:

Adapter Type:

ST/UPC Simplex

Capacity:

12 Fibers

Rack Units:

Mounting:

19" Rack Mounted

Dimension:

480* 300*1U

Working temperature:

-20℃~75℃

Storage temperature:

-40~+85℃

Packaging Details:

1pcs/box, 5pcs/ctn

Descrição do produto

Gorelink offers a variety of fiber patch panels. The rack-mounted fiber patch panel is a hardware unit that houses fiber optic connectors and facilitates the termination, connection, and management of fiber optic cables. It is designed to be mounted on a standard 19-inch server rack or network cabinet, providing an organized and secure way to manage fiber optic connections.There are 12 port,24 port,48 port,96 port available.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Parameters
Design	Sliding Rail
Material	Cold rolled steel sheet
Mounting Type	19" Rack Mounted
Capacity	12 Fibers
No. Of Rack Unit	1U
No. Of Tray	1x24F
Capacity of Tray	24F
Adapter	ST Simplex Port
Loaded	ST/UPC SM Simplex adapter
Insertion Loss	≤ 0.3dB
Return Loss	≥ 55dB
Color	Black
Dimension	483x300x1U(44.5)mm
Operating Temperature (°C)	-20 ~ +75
Storage Temperature (°C)	-40 ~ +85

12 Port ST 1U Fiber Optic patch panel 19" Rack Mounted Loaded ST/UPC Singlemode Simplex Adapter 0

Download Datasheet

19" Rack Mounted 1U Fiber Patch Panel -G718 series

Ordering Information

PART NO.	DESCRIPTION
G718-12W	12 Port Fiber Optic patch panel,1U,19" Rack Mounted, Sliding rail, Unloaded adapter plate
G718-12ST	12 Port Fiber Optic patch panel, ST Simplex(12 Fibers),1U,19" Rack Mounted,Sliding rail,Unloaded adapter and pigtails
G718-12ST-901	12 Port Fiber Optic patch panel, ST Simplex(12 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded SM ST/UPC Simplex adapter
G718-12ST-902	12 Port Fiber Optic patch panel, ST Simplex(12 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded SM ST/UPC Simplex and 1m LSZH pigtail
G718-12ST-501	12 Port Fiber Optic patch panel, ST Simplex(12 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded MM ST/UPC Simplex adapter
G718-12ST-502	12 Port Fiber Optic patch panel, ST Simplex(12 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded MM ST/UPC Simplex adapter and 1m LSZH Pigtail
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
